Transport and storage systems - Screw conveyor
Our company offers wide range of screw conveyors which are used for conveying cement, dust, fly ash and other similar materials in concrete batching plants, asphalt plants and also building materials industry.
- Round screw conveyors
The material is conveyed by the screw rotating inside the pipe housing. That conveyor's construction makes them suitable for horizontal and steep angle applications. Thanks to the closed housing the conveyed material avoids contact with external environment. That is always a desired feature of each conveying device.
The capacity of the screw conveyor can be tailored to material's specific features and customer requirements by gear motor and frequency converter.
- Capacity: up to 160 t/h
- Diameter: up to 400 mm

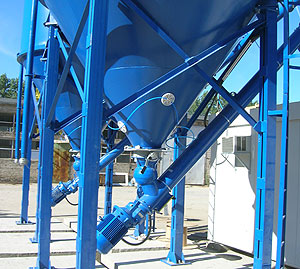

Screw conveyor for cement and dust conveying
Diameters from 114, 139, 168, 193, 219, 273, 323 mm,- Capacity up to 120 t/h (depending on the conveyor diameter and inclination angle),
- Inclination up to 45%
- All types of inlets and outlets,
- Inspection hatches.
U-shape screw conveyors
We offer screw conveyors which are particularly applicable for continuous conveying of all types of loose and granulate materials. The material is handled by the screw rotating in U-shape housing.
